Acceptance Sampling Protocols for Coated Industrial Textiles

Acceptance sampling for coated textiles pairs ASTM D5430 visual classification with ANSI/ASQ Z1.9 variables plans for destructive barrier verification.

22.09.26 8 min

Gauge

Coated technical textiles arrive at container freight stations in discrete master rolls, where structural performance depends on tight areal mass control. Verification starts by defining the true production lot ~ specifically, rolls produced from a single polymer compounding run applied across a continuous weaving beam sequence. If resin batches change at the knife coater or yarn lots shift on the creel, the sampling frame splits into separate inspection units.

Inspectors log roll stamps, lot numbers, and net linear yardage directly from the bill of lading before pulling cutouts.

Acceptance protocols for continuous roll goods differ fundamentally from piece-part inspection. A master roll is both a continuous linear substrate and a series of cross-directional zones vulnerable to thermal drift, coating blade deflection, and edge-bead accumulation. Standard square-root-of-N sampling plans (where N represents total rolls in the delivery) determine which rolls undergo destructive testing, with a minimum floor of three rolls per delivery lot.

A single fifty-meter master roll of polyurethane-coated nylon yields three full-width specimens across the head, center, and tail for hydrostatic burst verification.

Extracting test material requires stripping the outer protective wrap and unwinding three full baseline revolutions to clear handling abrasion and edge oxidation. Full-width swatches measuring one running meter are cut perpendicular to the selvage using rotary shears. These swatches supply test specimens for total mass per unit area under ISO 2286-2, cross-width coating mass distribution, and base substrate weight following solvent de-coating.

  • Gross Areal Mass confirms overall polymer and textile weight across the full usable roll width under controlled relative humidity.
  • Coating Distribution isolates knife-edge deflection by comparing left-edge, center-trough, and right-edge square swatches.
  • Substrate Mass determines base yarn consumption following methyl ethyl ketone or cyclohexanone polymer dissolution under ISO 2286-1.
  • Base Thickness tracks overall cross-sectional profile using dead-weight dial micrometer anvils under ASTM D1777 specifications.

Coating mass governs tensile response: when applied thickness falls below the specification lower limit, the base yarns lose abrasion resistance and barrier integrity. When coating mass runs heavy, roll weight adds freight penalties and flexible composite fatigue life drops under cyclic flexing. The laboratory conditions all cut swatches at twenty-three degrees Celsius and fifty percent relative humidity for twenty-four hours before weighing on analytical balances calibrated to three decimal places.

Pinking shears rest on a wooden sampling block before a grid of textile swatches on a metal table within a yarn processing workshop.

Defect

Visual inspection across continuous yardage catches coating voids, blade streaks, and base yarn mispicks before material reaches the cutting tables. Automated optical scanning rigs and illuminated perches run below fifteen meters per minute to let operators verify automated defect flags. Technicians categorize anomalies into substrate faults, coating irregularities, and finishing imperfections using ASTM D5430 four-point rules adapted for coated surfaces.

The four-point system assigns penalty demerits based on defect length along either the warp or weft. Flaws measuring under seventy-five millimeters incur one point, faults between seventy-five and one hundred fifty millimeters take two points, flaws between one hundred fifty and two hundred twenty-five millimeters earn three points, and defects exceeding two hundred twenty-five millimeters receive four points. Any continuous defect running longer than one linear meter generates four penalty points per linear meter.

Pinholes, blistering, delamination patches, and exposed scrim automatically take four points regardless of size.

Coated Textile Visual Defect Scoring and Demerit Allocation under ASTM D5430 Modifications
Defect Classification Physical Description Dimensional Threshold Assigned Penalty
Minor Coating Streak Superficial blade line without base yarn exposure Length under 75 mm 1 Point
Intermediate Void Localized coating thinning exposing base yarn crown Length between 75 and 150 mm 2 Points
Major Blade Drag Deep scratch through topcoat exposing primer layer Length between 150 and 225 mm 3 Points
Critical Pinhole Complete polymer breach penetrating through backing Any detectable diameter 4 Points
Continuous Coating Sag Thermal curing run or excess resin accumulation Length exceeding 225 mm 4 Points

Inspectors log every pinhole coordinate, converting total points for each sampled roll into an overall defect rate per one hundred square meters of examined surface. Acceptance thresholds for architectural membranes and containment liners cap individual roll scores at eighteen points per one hundred square meters, with the lot average held to twelve points per one hundred square meters.

While isolated coating drag marks are often defended as benign thermal settling that will melt closed during high-frequency field welding, quality protocols score unhealed streaks as reportable defects.

Layered performance textiles and coated technical fabrics rest on an outdoor surface amid a misty woodland backdrop.

Shear

Destructive mechanical testing isolates the bond line where polymeric films fuse to woven scrips. Physical acceptance testing evaluates peel adhesion under ISO 2411, strip tensile strength and elongation under ISO 1421, trapezoidal tear resistance under ISO 13937-4, and hydrostatic pressure resistance under ISO 811. Each property follows a distinct statistical distribution across production lots, which dictates whether an attribute or a variables sampling plan applies.

Attribute inspection plans under ISO 2859-1 (ANSI/ASQ Z1.4) treat specimens as conforming or non-conforming on a binary pass-fail basis. These plans require large sample counts for statistical validity, requiring extensive roll destruction on expensive architectural PTFE or hypalon fabrics. Variables inspection plans under ISO 3951-1 (ANSI/ASQ Z1.9) evaluate the distance between the batch mean and specification limits scaled by standard deviation.

Variables plans deliver equivalent consumer protection with one-third the destructive cutouts, provided the mechanical property fits a normal distribution.

Variables sampling reduces destructive specimen volume whenever coating thickness follows a verified normal distribution.
  1. Normality Verification confirms that historical batch peel adhesion values fit a Gaussian curve through Shapiro-Wilk or Anderson-Darling tests at the five percent significance level.
  2. Variability Estimation calculates sample standard deviation across selected rolls to determine the appropriate quality index value.
  3. Acceptance Index Computation subtracts lower specification limits from the sample mean, dividing by the sample standard deviation for comparison against tabular criteria.
  4. Switching Execution reverts testing back to ISO 2859-1 attribute sampling whenever batch kurtosis or skewness indicates multi-modal compounding distributions.

Tensile failure voids the batch, while hydrostatic testing subjects coated specimens to rising water columns until three distinct water drops break through the barrier layer. Air permeability under ISO 9237 serves as an immediate proxy for micro-porosity in architectural fabrics before long-duration hydrostatic tests finish.

Sample Size Comparison Between Attribute and Variables Sampling for Destructive Barrier Testing
Lot Size (Linear Meters) Attribute Plan Code Letter Attribute Sample Size (Swatches) Variables Plan Code Letter Variables Sample Size (Swatches)
501 to 1,200 G 32 D 7
1,201 to 3,200 H 50 E 10
3,201 to 10,000 J 80 F 15
10,001 to 35,000 K 125 G 20

Because cross-directional tearing risks structural integrity, specifying Section 8.3 of ASTM D751 in purchase contracts replaces unilateral factory test certificates with third-party pre-shipment variables verification, transferring specimen destruction costs to the seller whenever the calculated acceptance index falls below the critical threshold.

A hand holds a swatch of heavy technical fabric against a metal jig to perform a standardized flex resistance test within a laboratory environment.

Caliber

Chemical compliance testing targets residual volatile organic compounds and banned plasticizers inside cured polymer layers. Coated fabrics intended for automotive interiors, protective apparel, and marine containment face strict limits under REACH Annex XVII, California Proposition 65, and persistent organic pollutant rules. Analytical sampling relies on roll composite schemes to manage laboratory expense without sacrificing detection limits.

Because uncured resin bleeds plasticizer rapidly, polyvinyl chloride coatings frequently contain ortho-phthalates including DEHP, DBP, and BBP, restricted to combined concentrations below one thousand parts per million. Polyurethane coatings require testing for residual dimethylformamide (DMFa) solvents under REACH entry 72, which enforces a limit of three thousand milligrams per kilogram in industrial textiles. Fluoropolymer water- and oil-repellent treatments on base fabrics undergo liquid chromatography-mass spectrometry to verify the absence of per- and polyfluoroalkyl substances (PFAS) above parts-per-billion reporting limits.

  • Solvent Extraction measures residual methyl ethyl ketone, toluene, and dimethylformamide using headspace gas chromatography with mass selective detection.
  • Plasticizer Speciation isolates monomeric and polymeric ester additives through solvent dissolution and gas chromatography-mass spectrometry.
  • Heavy Metal Leaching determines lead, cadmium, and organotin stabilizers under EN 16711-2 acidic artificial sweat extraction.
  • Flame Retardant Screening identifies restricted brominated and organophosphorus flame retardants via inductively coupled plasma mass spectrometry.

Residual solvent retention triggers delamination, so composite sampling combines identical mass slivers cut from five distinct rolls into one analytical testing vial. If the composite result breaches one-fifth of the regulatory limit, each constituent roll undergoes individual extraction to isolate the non-compliant compounding batch.

The unresolved question remains whether non-targeted chemical screening methods can replace individual restricted-substance test lists across fluctuating industrial resin supply chains without increasing false-positive rejection rates.

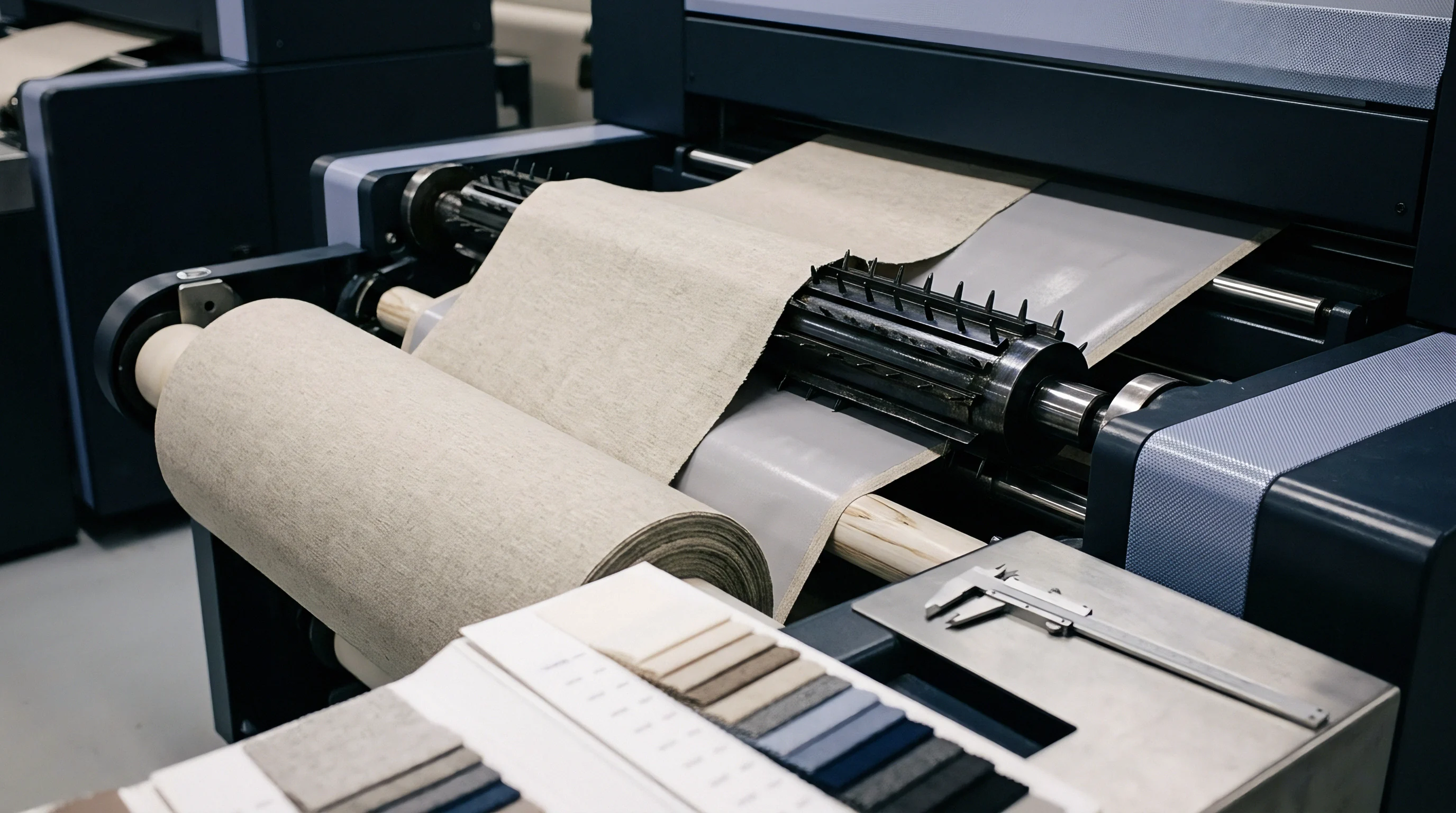

A textile printing machine feeds a roll of woven linen fabric across metal rollers next to color swatches and a caliper.

Port

Border enforcement authorities hold industrial shipments when analytical dossiers show mismatched lot numbers. Transaction certificates issued for technical coated textiles must tie roll barcode tags directly to compounding dates and loom-state records. Discrepancies between the article description on customs declarations and laboratory test reports trigger immediate holds, bonded storage fees, and secondary sampling.

When an acceptance protocol rejects a landed shipment, formal disposition rules govern cargo quarantine, re-testing protocols, and seller notification deadlines. Importers issue formal discrepancy notices within ten business days of delivery receipt, backed by complete test certificates, defect maps, and photographs of non-conforming goods.

A rejected industrial textile lot held under formal carrier lien accrues demurrage daily while secondary arbitration proceeds.

Arbitration panels require sealed referee swatches, cut during initial port reception and stored in climate-controlled barrier bags, to supply duplicate specimens for secondary evaluation. Testing takes place at a mutually agreed ISO 17025 accredited facility whose testing scope explicitly covers coated textile methods.

Because batch traceability begins at compounding, customs agents seize undocumented rolls, while secondary sampling doubles total testing fees. Material failures compound downstream: improper curing ruins seam weldability, elevated temperatures accelerate plasticizer migration, and cold cracks compromise air containment.

A failed sampling arbitration results in total cargo rejection, forced re-export at supplier expense, complete forfeiture of commercial letter-of-credit draws, and contractual indemnity claims for downstream manufacturing plant downtime.

Nomenclature

ISO 9237

Standard Method ~ An international testing standard describes the method for determining the permeability of fabrics to air under a specified pressure drop.

ISO 811

Pressure Evaluation ~ Laboratory test standards measure the resistance of fabrics to the penetration of water under hydrostatic pressure.

ISO 17025

Laboratory Competency ~ Accreditation requirements for testing and calibration facilities define the technical standards and management protocols necessary to ensure consistent and impartial results across analytical assessments.

Composite Sampling

Sample Aggregation ~ Statistical collection protocol involves merging individual specimens from multiple locations within a single production lot to create a representative mixture for subsequent chemical or physical testing.

REACH Annex XVII

Legal Restriction ~ A regulatory list within European Union law that restricts or prohibits the manufacture and placement of specific hazardous chemicals in textiles.

Hydrostatic Resistance

Pressure Containment ~ Performance metrics defining the ability of a material to prevent liquid water from penetrating its surface under rising pressure provide a standard for waterproof garments.

Dimethylformamide

Chemical solvent ~ A clear organic compound functions as a critical medium for the high volume spinning of synthetic fibers like acrylic and elastane.

ISO 13937-4

Methodological Scope ~ Mechanical tear resistance measurement defines this protocol for determining the tongue tear force of textile fabrics.

ISO 3951-1

Acceptance Sampling ~ ISO 3951-1 provides the statistical framework for variable inspection during textile production, governing how mills verify continuous quality characteristics against defined specification limits.

ISO 2411

Adhesion Specification ~ Rubber or plastics coated fabrics require precise assessment of the bond between the coating and the base textile substrate.

ISO 1421

Test Standard ~ Standardized testing protocols define mechanical evaluation procedures for coated fabrics subjected to tensile loading until structural rupture occurs.

Peel Adhesion

Separation Resistance ~ Mechanical forces required to strip a bonded layer from its substrate define the strength of the interface.
