Geometrical Wave Height
Peak-to-trough displacement of a yarn or fibre axis relative to its central baseline defines the transverse physical dimension of structural undulation. In raw staples, textured filaments and interlaced fabric structures, crimp amplitude determines the bulk volume, lateral compressibility and elastic recovery of the textile substrate. Fibre texturing processes, including false-twist or stuffer-box mechanisms, generate this three-dimensional curvature through controlled thermal mechanical deformation.

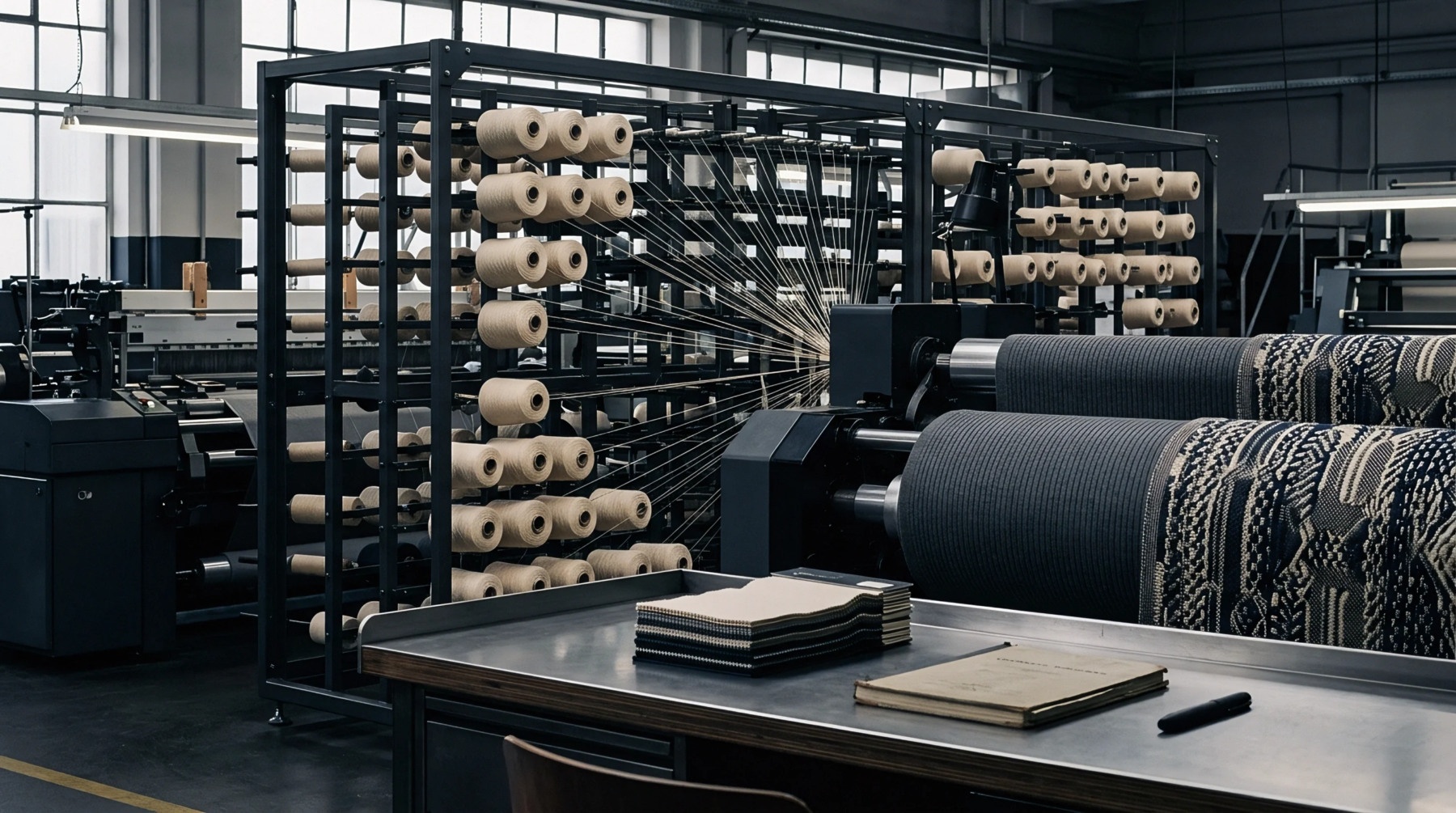

Weaving also introduces undulations as warp and weft yarns traverse above and below each other under loom tension.
Yarn Structural Mechanics
Longitudinal yarn deformation during tensile loading initially unbends transverse undulations before stretching the polymeric backbone. In this phase, crimp amplitude governs the low-load elongation region of the stress-strain curve, delaying initial modulus development until inter-fibre decrimping completes. High-amplitude configurations increase air entrapped within synthetic yarn bundles, yielding higher insulation values and lower packing fractions.
Excess displacement, however, degrades packing density inside compact spinning nozzles, promoting filament snagging and irregular drafting behaviour. High-speed spinning plants manage wave dimensions to control staple cohesiveness during carding and sliver drafting operations.
Geometric Measurement Procedure
Direct quantification requires optical profile projection or high-magnification digital image analysis under calibrated initial tension. The crimp amplitude is computed as half the vertical height between adjacent crest and trough centres along the relaxed fibre path. Standard testing protocols, such as ASTM D3937, specify applying a standard pre-tension to straighten crimp waves without stretching individual fibres.
On woven fabrics, stripping warp and weft threads allows cross-sectional micrometric evaluation of thread bending geometry against weave density specifications.
Woven Decrimping Consequence
Fabric tensile behaviour along warp and weft axes responds directly to the balance of transverse yarn displacements established on the loom. A large crimp amplitude in warp ends, caused by high weft tension during beat-up, produces pronounced warp elongation alongside reduced weft stretchability. Stenter heat-setting operations reset these amplitude ratios through controlled biaxial overfeed, balancing dimensional stability against wet relaxation shrinkage.
