Predictive Crimp Exchange Modeling in Woven Fabrics

Interlock

Loom takeup registers directly on fabric yield and finished dimensional stability. When warp yarns bend around straight weft insertions under loom tension, the warp absorbs structural crimp while the weft remains nearly flat. Releasing this tension off-loom and introducing aqueous agitation during wet processing shifts this equilibrium.

The warp yarn contracts, forces the weft yarn to bend, and initiates crimp exchange. Predictive modeling calculates this mechanical interchange to prevent off-spec fabric widths, unpredicted pick density shifts, and excessive post-wash shrinkage.

Analytical modeling begins with the classical geometry formulated by F. T. Peirce, which treats yarns as circular, flexible, incompressible cylinders. When tension pulls one yarn system straight, the intersecting yarn system increases its modular height. The sum of the central thread displacements equals the sum of the yarn diameters in a fully jammed structure.

In industrial plain weaves, the yarn path deviates from circular geometry due to lateral compression at the crossover points. Modified predictive models incorporate yarn flattening ratios and bending hysteresis to account for non-elastic yarn behavior during aqueous finishing.

Predictive crimp models require empirical thread diameters, yarn linear densities, and target sett counts. In a balanced plain construction, warp and weft interchange crimp until the internal strain energy reaches a minimum state. If the finishing stenter pulls the warp tight, warp crimp drops from 12 percent down to 4 percent.

This mechanical extension forces weft crimp to rise from 6 percent to 14 percent, causing substantial width contraction. Accurate modeling identifies the exact stenter overfeed and width settings required to set the finished crimp ratio without inducing residual relaxation shrinkage.

A finished plain weave with 8 percent warp crimp and 8 percent weft crimp resists domestic laundering shrinkage below 1.5 percent under ISO 5077.

Structural yarn interchange directly dictates finished roll length. Weaving twenty thousand meters of warp yarn does not yield twenty thousand meters of woven fabric. A 9 percent warp crimp loss along the loom and finishing line reduces greige output to 18,348 linear meters.

Converting this greige cloth through tension-heavy continuous dyeing further alters these ratios, lengthening the piece while narrowing the cuttable width. Sourcing specifications that fail to state crimp tolerances under ISO 7211-3 invite severe yield shortfalls at the garment factory.

Mechanics

Mathematical crimp models rely on exact geometric relationships connecting yarn spacing, yarn diameter, wave height, and crimp percentage. In a plain weave repeat, the warp spacing and weft spacing define the planar unit cell. The yarn axis follows an undulating path composed of circular arcs and straight tangent segments.

As tension pulls the warp straight, the thread path length remains constant while the projected planar length increases, depressing the transverse weft yarn into deeper undulations.

The fundamental geometric equations quantify this physical movement across five primary parameters:

• Thread Spacing fixes the horizontal distance between adjacent parallel yarn axes measured in millimeters per pick or end.
• Yarn Diameter determines the physical clearance between intersecting thread centers at maximum packing density.
• Crimp Amplitude establishes the vertical displacement of the yarn neutral axis from the fabric mid-plane.
• Modular Length defines the true yarn axis length consumed within a single structural repeat unit cell.
• Yarn Flattening Ratio governs the minor-to-major axis dimension shift when normal crossover forces compress the fibrous bundle.

Predictive calculations combine thread counts with yarn flexural rigidity. Yarn flexural rigidity, measured on a Shirley stiffness tester, dictates the force needed to bend the yarn over the transverse thread. Ring-spun cotton yarn exhibits a relatively low initial bending modulus, flattening readily under beat-up pressure.

Air-jet textured filament yarn resists cross-sectional deformation, maintaining an elliptical cross-section that forces immediate crimp exchange into the opposing yarn system even under minimal finishing tension.

Fabric geometry transitions into a jammed state when the sum of the warp and weft diameters equals the total fabric thickness and thread spacing reaches its mechanical limit. At the jamming limit, neither yarn system can increase its crimp without severe cross-sectional distortion or yarn crushing. High-density industrial fabrics, such as down-proof poplins or ballistic duck constructions, operate near this geometric limit.

Predictive models determine whether target pick densities can be woven without generating destructive beat-up resistance on the loom rail.

The data in Table 1 illustrates the inverse coupling between warp and weft crimp throughout industrial processing. The on-loom state reflects heavy warp tension, depressing warp crimp to 3.2 percent while forcing weft crimp to 14.8 percent. Scouring in a tension-loaded jig dye vessel pulls the warp tight again, reversing the relaxation achieved after weaving.

Only dedicated stenter processing with positive warp overfeed rebalances the crimp ratio to 8.4 percent warp and 8.6 percent weft. This balanced configuration stabilizes finished pick counts and prevents subsequent dimensional distortion during wet laundering.

When engineers fail to model this structural exchange, the production line produces narrow fabric rolls carrying high residual warp stress.

Rigidity

Yarn bending behavior departs significantly from ideal elastic beam theory. A spun yarn consists of individual fibers held by friction and twist. When bent around a transverse yarn, internal fiber slippage causes non-linear bending hysteresis.

As a consequence, the energy required to bend the yarn during weaving is not fully recovered when the fabric relaxes. Mathematical models must incorporate this flexural rigidity differential between dry greige weaving and aqueous wet processing.

Water penetration plasticizes natural fibers, dropping the yarn bending modulus. Cotton fibers undergo lateral swelling up to 14 percent in diameter, which increases internal packing density while lowering longitudinal bending resistance. As cotton yarns pass through a continuous desizing and scouring range, the swollen, plasticized warp yields easily to internal transverse forces.

If the processing range applies excessive longitudinal nip tension, the desized warp flattens out, driving the weft yarn into deep, irreversible crimp waves that permanently narrow the finished fabric.

Synthetic yarns demonstrate a different mechanical response dominated by thermal relaxation and memory. Continuous filament polyester yarns experience structural heat-setting at temperatures between 180 and 210 degrees Celsius. Above the glass transition temperature, polymer chains realign to lock the crimp wave geometry in place.

Predictive thermal-crimp modeling determines the exact dwell time and mechanical overfeed required in the heat-setting zones to fix the crimp ratio before printing or coating stages.

The interaction between yarn twist multiplier and flexural rigidity influences crimp exchange symmetry. High-twist yarns resist lateral flattening, maintaining a firm, round cross-section that forces deeper crimp undulations in the intersecting low-twist yarn system. In twill and satin constructions, asymmetric float lengths alter the local bending moments, allowing yarns to exchange crimp unevenly across the weave repeat.

Accurate predictive algorithms evaluate these float distribution vectors to prevent diagonal fabric torque and skewing.

Can predictive algorithms reliably map crimp interchange in asymmetric broken twills? The directional shift of yarn crossover points in complex weaves creates localized variations in bending stiffness that challenge standard one-dimensional geometric equations.

Tensions

Continuous wet processing equipment subjects fabric to a succession of longitudinal and transverse mechanical loads. Each processing unit, from continuous open-width washers to pad mangles and drying cylinder ranges, exerts pulling forces on the warp. These longitudinal tensions continuously strip warp crimp while driving weft crimp higher.

Finishing mills must compensate for this mechanical distortion using driven load-cell compensators and synchronized servo drives.

The cumulative impact of line tension alters fabric geometry at each processing stage:

1. Open-Width Desizing applies moderate warp tension to prevent creasing, reducing warp crimp by 1.5 to 2.5 percentage points during starch breakdown.
2. Caustic Mercerization induces intense fiber swelling under high transverse and longitudinal tension, locking the yarn cross-sectional flattening ratio.
3. Continuous Pad Dyeing pulls the damp fabric through heavy squeeze rolls, driving the warp flat and increasing weft wave height.
4. Cylinder Drying evaporates water under high contact pressure, setting temporary dry crimp imbalance if tension controls are improperly calibrated.

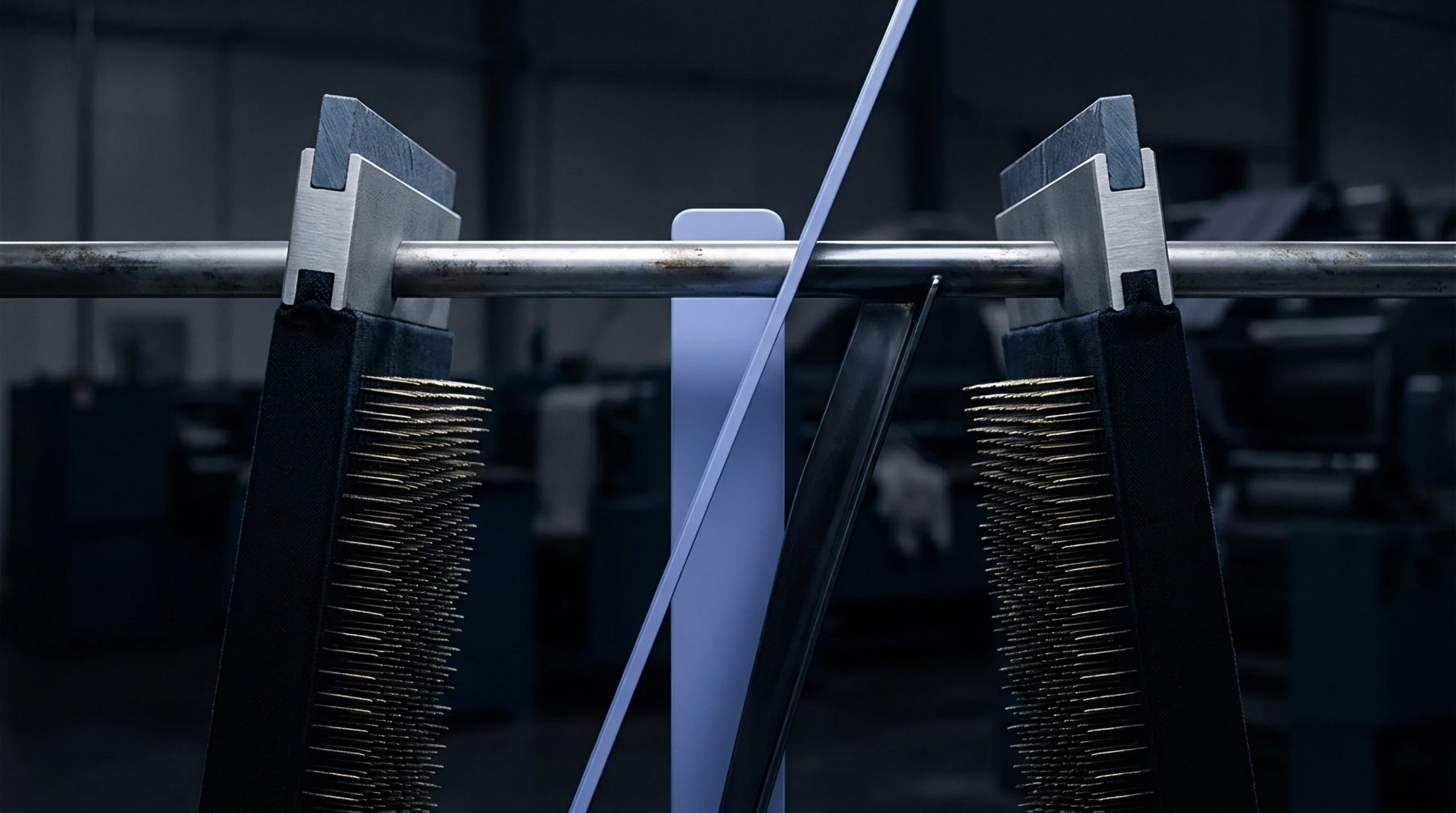

5. Stenter Heat-Setting applies variable pin-chain overfeed and cross-width clip extension, mechanically resetting the warp-to-weft crimp balance.

A continuous finishing range operating with uncalibrated dancer rolls can impose longitudinal tensions exceeding 400 Newtons across a 160-centimeter fabric width. Under this tension, a plain weave poplin loses up to 60 percent of its greige warp crimp. The finished cloth exits the line looking smooth, but it carries severe latent strain energy.

Upon domestic laundering, the released warp yarns contract violently to re-establish geometric equilibrium, generating warp shrinkage rates as high as 8 to 12 percent.

A standard commercial contract enforces an off-loom construction tolerance of ±2 picks per centimeter, but post-finishing dimensional stability disputes void delivery terms if greige crimp targets are omitted.

Predictive modeling establishes the mechanical overfeed percentage required on the stenter frame to neutralize this latent strain. By feeding the fabric onto the stenter pins at 3 to 6 percent above the nominal take-up speed while holding width pins to target dimensions, processors allow the warp yarns to re-crimp during hot-air drying. This controlled thermal relaxation locks in the specified ends and picks per centimeter while ensuring compliance with international shrinkage standards.

Suppliers frequently state that excessive washing shrinkage is simply an inherent characteristic of the fiber rather than an uncorrected finishing tension defect.

Settlement

Woven fabric specifications require tight structural tolerances to ensure reliable garment assembly and predictable performance. A complete engineering specification defines not only finished weight and thread density, but also explicit crimp percentages and yarn count states. When buying technical woven fabrics, technical managers verify both greige loom configurations and post-finishing mechanical states to protect production yields and garment fit.

Consider a practical engineering calculation for a 50,000-meter production order of high-density nylon 6,6 plain weave fabric designed for technical outerwear:

• Target Finished Specification requires 44 ends per cm, 34 picks per cm, 150 cm cuttable width, and a finished mass of 115 g/m² under ISO 3801.
• Loom Setup Calculations establish that a 5 percent weaving warp crimp and a 12 percent weft crimp on the loom yield an on-loom sett of 41.8 ends per cm and 32.5 picks per cm at 158 cm reed width.
• Warp Yarn Procurement must account for a cumulative 7.2 percent total crimp loss plus 1.8 percent waste factor, requiring 54,650 meters of warp yarn per loom line.
• Finishing Route Verification applies a 4 percent stenter overfeed at 195 degrees Celsius to balance warp crimp at 7.5 percent and weft crimp at 7.0 percent.

The comparative data in Table 2 shows the severe financial penalty of unmanaged crimp exchange. When excessive line tension flattens the warp from 7.5 percent down to 3.2 percent, the weft crimp surges to 13.8 percent. The fabric narrows to 141.5 centimeters, rendering the bulk goods unusable for standard marker layouts.

Furthermore, the excess weft packing increases fabric mass to 123.5 g/m², driving up raw yarn consumption costs per linear meter while causing catastrophic warp shrinkage during garment wash testing.

Procurement teams prevent these catastrophic losses by incorporating strict mechanical crimp clauses into purchase orders. Technical contracts must specify testing under ASTM D3883 or ISO 7211-3 with defined tolerances of ±1.0 percent on finished crimp ratios. Ensuring that finishing plants run stenter frames with calibrated warp overfeed and automated width tracking guarantees finished fabric that performs reliably in the cutting room and maintains dimensional stability through repeated laundering cycles.
