Basic Minimum Warp Set Calculation Principles for Greige Weaving

Creel

Direct yarn pathing from supply packages to the warping drum sets the physical boundary of every greige fabric structure. Before yarn even enters the creel, calculating total warp ends requires tallying ground ends, face ends, catch cords, and selvage threads. Mistakes in that initial count propagate through reed wiring, size box alignment, and drop wires, causing width variances or selvage defects on the loom.

Getting the calculation right starts with the target finished cloth, then works backward through the shrinkage and stretch of weaving and wet processing.

Total warp ends depend on five structural variables: finished fabric width, finished ends per unit measure, expected widthwise shrinkage during finishing, warp crimp percentage, and selvage thread allocation. Ground ends are calculated by multiplying reed width by ends per unit length in the reed. In practice, weavers convert finished cloth specs back into loom-state variables.

If a specification targets 60 ends per inch across a 60-inch finished width, assuming 3,600 ends is too simple. Scouring relaxation, finishing contraction, and reed expansion demand a wider setup in the reed.

Calculating reed width means taking finished width and adjusting for total widthwise contraction ~ a combined figure of weft crimp and wet processing shrinkage. For a plain-weave cotton greige targeting 150 centimeters finished width at 8 percent combined contraction, minimum reed space is 150 divided by 0.92, or 163.04 centimeters. If target finished density is 30 ends per centimeter, total ground ends equal 150 times 30, or 4,500 ends.

Spreading those 4,500 ends over the 163.04-centimeter reed width yields a reed density of 27.60 ends per centimeter. Dedicated selvage ends are added so edges hold together under tension during rapier or jet insertion.

Because selvage ends take higher friction during weaving, they require heavier counts or doubled densities. Standard shuttleless looms run between 24 and 64 dedicated selvage ends per side, depending on whether the construction is leno, tuck-in, or fused. In dense plain weaves, selvage ends feed from the main creel but follow specific heddle drafts.

Factoring these into creel capacity gives the exact bobbin count. If a creel holds 600 live package positions for a set needing 4,564 total ends, direct warping uses eight beams of 570 or 571 ends each. Sectional warping splits those 4,564 ends into eight equal 570-end bands, taking the four remaining ends from auxiliary creel pegs.

Creel layout controls both running efficiency and tension uniformity across the warp sheet. Longer yarn paths from rear rows to the apex gatherer build tension variations that become slack ends during sizing and weaving. Compensating for tension requires adjusting for package diameter, guide friction coefficients, and bank distance.

Creel capacity dictates how packages spread across section bands or beams. Overcrowding causes package collisions at high unwinding speeds, while underutilizing space forces extra beam joins and increases waste margins.

Breakage rates during warping directly affect end-count balance. Operators monitor break frequency per million meters drawn, targeting under 1.5 breaks per hundred ends over 10,000 meters. If a broken end slips past photoelectric or motion sensors, that missing thread runs through the rest of the beam section.

To account for piecing, creel waste, and partial cones, calculation models add a 0.5 percent failure allowance to total yarn mass. That figure establishes the yarn purchase order before warping begins.

Complex warp patterns introduce count variations across the ground structure for stripes or ribbing. These mixed warps require creel zoning, placing different yarn types or counts on separate banks to control tension. Textured polyester filaments need lower tension than ring-spun cottons of equal linear density.

When combining filament and staple yarns in one set, tension controls must be set separately by sector. Mixing tension profiles without zoning causes uneven crimp take-up in the greige fabric, resulting in longitudinal puckering.

Small package remnants left on creel pegs represent an unrecoverable yarn mass loss that must be calculated into the initial raw material purchase order.

Creel setup parameters limit maximum warping speed. Running high-twist yarns requires slower unwinding to prevent loops and snarling between the cone nose and guide eyelet. Dense warps frequently run on V-shaped creels to reduce friction angles, permitting speeds up to 1,200 meters per minute on direct warping equipment.

Rectangular creels save floor space but increase threadline friction, capping unwinding speeds around 600 meters per minute to avoid tension spikes. Warp calculations must include these machine limits to align with sizing and weaving throughput.

Yarn alignment at the creel front plate determines thread sheet uniformity entering the drum or beam. Uneven spacing across the comb creates dense ridges on the beam that build up local circumference, causing irregular stretch during sizing. To maintain flat beam geometry, the comb expansion ratio must match calculated ends per centimeter across the beam head.

Even spacing at the outlet maintains steady tension on every end, preserving yarn properties prior to slashing.

Beam

Determining total warp length requires tracking yarn length changes from the creel through to the finished greige roll. Raw yarn on a warping beam stretches and contracts through sizing, weaving, and off-loom relaxation. Sizing warp length directly from finished cloth yardage leads to material shortfalls.

The total length calculation must balance target grey fabric length against warp crimp, sizing machine stretch, loom waste allocations, and remnant beam scrap metrics.

Warp crimp is the curvature formed as warp yarns interlace around weft picks in the loom shed. Expressed as a percentage, it accounts for extra yarn consumed per unit of woven cloth. Dense plain weaves carry high warp crimp, often between 6 percent and 12 percent, whereas a loose 4/1 satin may stay between 2 percent and 5 percent.

The core formula for warp length per cut is: Warp Length equals Greige Cloth Length multiplied by one plus Warp Crimp Percentage divided by one hundred. For a 1,000-meter greige roll at 7 percent crimp, required yarn length at the reed equals 1,070 meters.

1. Target greige cloth length is set from customer roll cut specs and finishing line batch minimums.
2. Warp crimp percentage is measured by extracting threads under standard tension per ISO 7211-3 guidelines.
3. Base yarn length required at the loom comes from multiplying greige length by the warp crimp factor.
4. Sizing stretch percentage is subtracted to adjust for mechanical draft between size box and beam winder.
5. Loom tying-in waste, sizing lead-in, and beam end scrap scrap allocations are added to establish gross beam length.
6. Total warping beam length is divided by weaver beams per set to calculate creel run lengths.

Sizing machine stretch directly alters yarn length. Passing through the liquid size bath and wet-splitting zones under tension permanently elongates both synthetic and staple yarns. This stretch adds 0.5 percent to 2.0 percent to warp length, reducing raw yarn length required from the creel.

Excessive stretch strips yarn elasticity and spikes break rates during shed opening. Sizing controls must hold stretch to strict targets: 1.0 percent for ring-spun cotton and a 0.5 percent cap for continuous multifilaments. The gross set formula factors this in by subtracting stretch percentage from crimp-adjusted length.

At twenty-four picks per centimetre on an air-jet loom, a three percent underestimation of warp crimp shortens final greige yardage by thirty-two metres per thousand-metre weaver beam.

Loom setup generates unavoidable waste at both ends of a beam. Loading a beam requires pulling warp through the back rest, drop wires, heddles, and reed before tying onto the take-up roll or an existing warp tail. Mechanical tying-in consumes 1.5 to 2.5 meters per load.

Automatic knotting frames need a parallel warp tail of at least 1.0 meter for the selector needle to operate reliably, while manual drawing takes up to 3.0 meters. At the tail end, unweaveable length between harness frames and the beam core adds 3.0 to 5.0 meters of waste.

Flange size on the weaver beam limits overall warp capacity. Volume depends on barrel diameter, flange diameter, yarn count, end density, and packing density ~ which varies with winding tension and yarn compressibility. Theoretical yarn volume uses the cylindrical formula: Volume equals pi multiplied by width multiplied by the difference between squared flange radius and squared barrel radius.

Controlled high-density winders reach packing densities of 0.45 to 0.58 grams per cubic centimeter on cotton. Overfilling the flange leads to threads slipping over the rim, disrupting edge alignment and causing sloughing in transit.

Total warp length for a multi-beam run compounds individual beam figures into a single master calculation. Consider a 10,000-meter order of cotton poplin split across ten weaver beams. With cuts specified at 1,000 meters, 8 percent crimp, 1 percent sizing stretch, 6 meters setup waste per beam, and 30 meters size box transition scrap for the set, the math calculates sequentially.

Net length for each 1,000-meter roll is 1,000 times 1.08, or 1,080 meters. Factoring in 1 percent sizing stretch reduces that to 1,069.3 meters drawn from the warping beam. Adding 6 meters setup waste yields 1,075.3 meters per beam.

Ten beams total 10,753 meters, and adding 30 meters of sizing transition waste brings final warping set length to 10,783 meters.

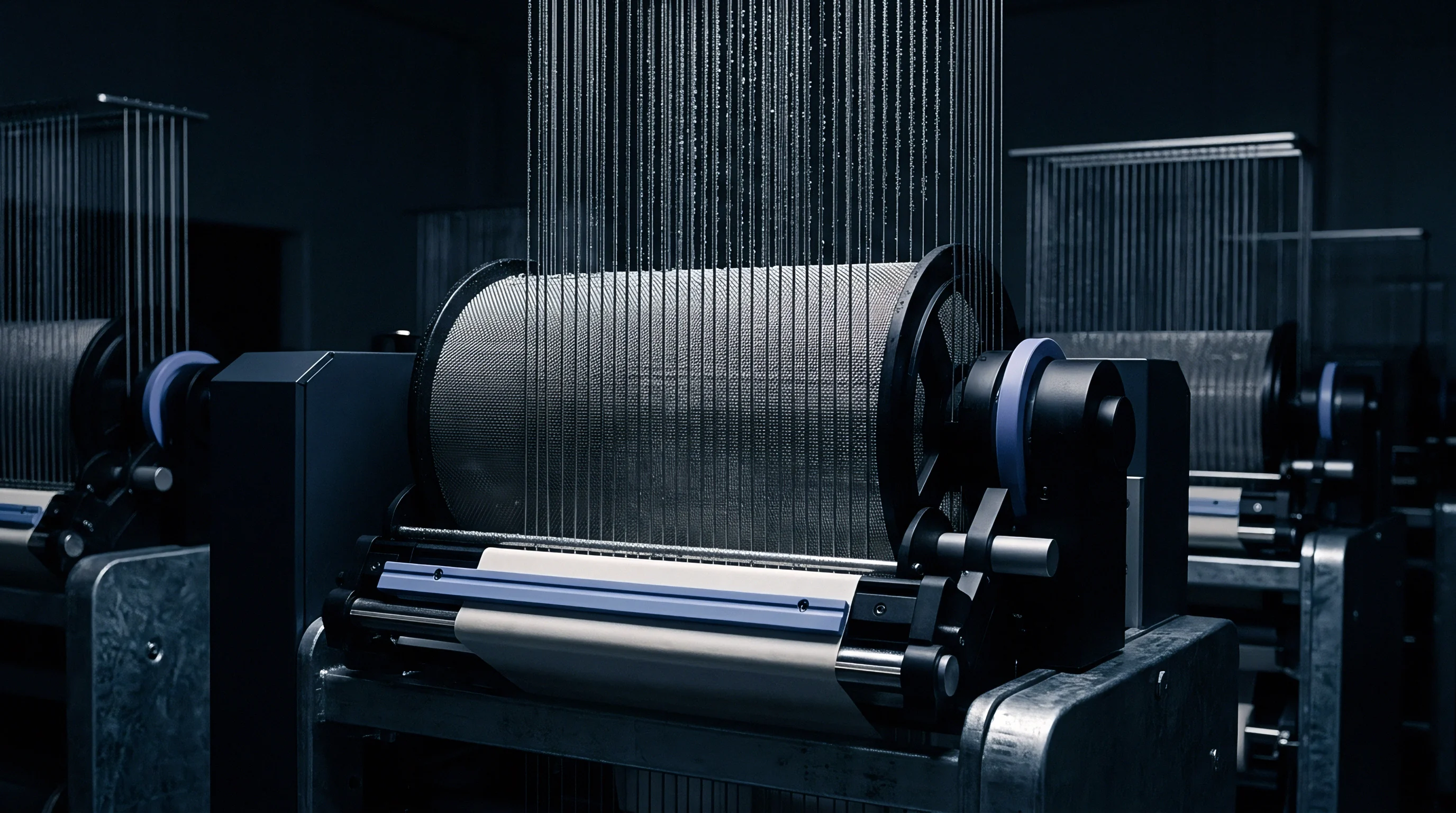

Converting warping beams to weaver beams governs sizing machine layout. Direct warping winds yarn onto multiple section beams that mount together on the sizing creel. If a weaver beam requires 6,000 ends and creel capacity caps at 800 ends, the sizing creel loads eight section beams side-by-side to feed the 6,000-end sheet into the size box.

All eight beams must match in length; any variation creates single-beam scrap, where longer beams are cut and dumped when the shortest hits its core. Calibrated electronic length counters on direct warping frames prevent these disparities, keeping end-of-run waste below 0.1 percent of set length.

Tension variations during beam winding alter package geometry and yarn elongation. Inner layers near the steel barrel experience heavy radial pressure from outer wraps, causing yarn flattening. Outer layers wound without tension compensation retain more stretch than the core.

Modern beamers use pneumatic or hydraulic press rolls to maintain constant contact pressure as the package grows, keeping density uniform from core to rim. That consistent density ensures steady unwinding during slashing, preventing slack ends from wrapping around immersion rolls.

Uncompensated sizing stretch and core slippage are sometimes cited to explain length shortfalls within standard mill operating allowances.

Swell

Finished fabric dimensions differ substantially from the off-loom greige state. On the loom, warp yarns are held under tension by let-off and take-up rolls. Once released and processed through wet finishing, stress relaxation triggers immediate warp contraction while yarn diameters swell.

Setting accurate greige warp specs requires accounting for yarn swell dynamics, scouring shrinkage, stenter overfeed, and finishing stability standards.

Hydrophilic fibers swell as they absorb water during scouring, bleaching, and dyeing. Amorphous regions in cellulosic fibers expand cross-sectionally while contracting along the yarn axis. Fully wetted cotton swells 14 percent to 20 percent in diameter, crowding adjacent warp and weft threads together.

That diameter expansion forces a tighter, more convoluted interlacing path, increasing crimp and shrinking fabric in both directions.

Calculating reed width for a target finished fabric relies on shrinkage values from standard test methods, primarily ISO 5077 for washing dimensional change and ISO 3801 for fabric mass. The formula is: Reed Width equals Target Finished Width divided by one minus Total Widthwise Contraction Ratio. Total contraction combines loom weft crimp with wet processing width loss.

If target finished width is 148 centimeters, weft crimp is 4 percent, and finishing shrinkage is 5 percent, total contraction equals 0.09. Dividing 148 by 0.91 yields a minimum reed width of 162.63 centimeters of active thread space.

What Adjustments Prevent Width Deficits during Greige Scouring?

Continuous bleaching ranges and pad-dry-cure lines pull wet greige fabric under substantial longitudinal tension. Stretching fabric lengthwise narrows it across its width, following Poisson’s ratio in flexible sheets. If a plant attempts to pull fabric back to target width on a stenter without adequate overfeed, high internal stresses become trapped in the structure.

As soon as finished cloth is washed, it snaps back with severe relaxation shrinkage. Greige reed width must be set wide enough to allow natural relaxation on the stenter without mechanical forcing.

Under ISO 3801 testing protocols, fabric mass tolerances exceeding plus or minus two point five percent trigger re-testing of the grey yarn linear density before wet processing clearance.

Cover factor indicates whether a warp set can handle yarn swell without jamming or distorting. Fractional cover factor, calculated via the Peirce formula, measures the ratio of fabric surface covered by yarn relative to total area. Warp cover factor equals warp density divided by the square root of warp cotton yarn count, with combined cover uniting warp and weft values.

Above a combined cover factor of 0.88, the weave approaches theoretical maximum density. Entering wet processing near that limit restricts liquid penetration, limits swelling, and distorts fabric with severe bowing or skew.

Synthetic filament warps behave differently than staple cellulosics. Polyamide filaments swell slightly in water but shrink under heat setting above 180 degrees Celsius. Polyester shows minimal water swell but contracts significantly during stenter heat setting.

Calculations for synthetic continuous filaments must focus on thermal shrinkage rather than wet swell. With high-tenacity polyester, heat shrinkage can reach 6 to 8 percent, requiring wider reed setups to hit target finished widths.

The crimp difference between greige and finished states determines final yardage yield. As weft yarns swell in wet processing, warp yarns curve around larger diameters, raising warp crimp and shortening fabric length. A 1,000-meter greige roll off the loom can shrink to 940 meters after desizing, scouring, and drying if warp crimp rises from 6 percent to 12 percent.

Contracts must clarify whether length commitments apply to loom-state greige, relaxed off-loom, or heat-set finished length.

Under standard international textile arbitration rules, delivered fabric meeting a width tolerance of minus zero centimeters to plus two centimeters is compliant, but any negative deviation past five millimeters gives the buyer grounds to reject the lot or claim landed cost damages.

Spool

Raw yarn mass calculations establish purchasing requirements for warp inventory. Converting thread length into mass requires combining linear density units, moisture regain adjustments, and sizing chemical add-on percentages. Purchasing too little yarn starves warping and stops looms; purchasing too much locks capital into unusable cone remnants.

Accurate mass figures depend on clean unit conversions and waste accounting at every step of preparation.

Yarn count systems use either direct units, like Tex and Denier, or indirect units, like English Cotton Count (Ne) and Metric Count (Nm). Direct systems measure mass per fixed length ~ higher numbers indicate thicker yarn. Indirect systems measure length per fixed mass ~ higher numbers indicate finer yarn.

Conversions are fixed: Tex equals 590.5 divided by English Cotton Count (Ne), while Denier equals 5315 divided by Ne. Standardizing all yarns into kilograms using Tex units keeps calculations uniform across blended or multifilament warps.

In direct metric units, theoretical net dry warp mass uses the equation: Mass in Kilograms equals total warp ends multiplied by net warp length in meters, multiplied by yarn linear density in Tex, divided by one million. With English Cotton Count, it shifts to: Mass in Kilograms equals total warp ends multiplied by net warp length in meters, divided by the product of Ne count and 1,693.36. For 5,000 ends at 10,000 meters length using Ne 30/1 yarn, theoretical mass is 5,000 times 10,000 divided by 50,800.8, producing 984.24 kilograms of dry yarn.

• Inadequate Moisture Compensation ~ Purchasing raw yarn without factoring in official moisture regain leads to material shortfalls at delivery.
• Unregistered Sizing Pick-Up Discrepancies ~ Failing to separate size chemical mass from net yarn mass throws off weight readings during greige inspection.
• Creel Package Remnant Allocation Deficits ~ Omitting bottom-of-cone allowances leaves warping frames short of package ends before the set finishes.
• Linear Density Variance Fluctuation ~ Overlooking lot-to-lot count variations causes systematic fabric weight swings across multi-beam runs.

Commercial yarn purchases require adjusting dry mass for standard moisture regain per ISO 2060 guidelines. Raw cotton carries an official moisture regain rate of 8.5 percent, whereas continuous polyester filament sits at 0.4 percent. The formula is: Commercial Mass equals Dry Mass multiplied by one plus Official Moisture Regain Percentage divided by one hundred.

Applying cotton’s 8.5 percent regain to the 984.24-kilogram dry mass yields an official commercial weight of 1,067.90 kilograms. Invoices use commercial mass, so omitting moisture regain creates budget shortfalls when ordering raw packages.

A sizing box bath level dropped below critical dip length leaves perimeter warp ends under-sized and vulnerable to reed friction chafing.

Size pick-up adds non-fibrous dry mass to the warp sheet during slashing. Size film coats outer surfaces and penetrates the core to bind loose fibers, improving abrasion resistance against reed friction. Size pick-up measures dry size solids added relative to dry yarn mass: Size Pick-Up Percentage equals dry size mass divided by dry yarn mass, multiplied by one hundred.

Standard cotton runs apply 8 percent to 12 percent size solids, while synthetic filaments require 2 percent to 4 percent. Gross grey warp mass off the sizer equals commercial raw yarn mass plus dry size solids.

Waste margins account for material lost across four points: bobbin tails on the creel, knotting loss from end breaks, sizing lead-in sheets, and beam tie-in scrap. Spun staple yarns require a waste allowance of 1.5 percent to 2.5 percent over theoretical net mass. Continuous filaments experience fewer breaks, keeping waste between 0.8 percent and 1.2 percent.

The final raw yarn purchase order must combine moisture regain with these cumulative waste factors.

An uncalibrated sizing head tension control stretched Ne 40/1 combed cotton warps by 2.8 percent during slashing, stripping yarn elasticity and causing 140 loom stops per 100,000 picks across twenty air-jet frames. The resulting efficiency collapse forced the mill to scrap three complete weaver beams, absorbing a direct material loss of 3,200 euros in unrecoverable warp yarn and wasted sizing chemistry.

Spinning lot density variations cause subtle weight shifts between warp sets. A cotton yarn specified at Ne 30/1 with a commercial tolerance of plus or minus 2.5 percent can range in actual density from Ne 29.25 to Ne 30.75. If a delivery trends coarse (Ne 29.25), total yarn mass consumed per set rises by 2.5 percent.

Engineers check incoming lot test certificates (Uster summaries) before warping to adjust mass calculations for actual rather than nominal counts.

Dock

Minimum warp set calculations mark the threshold where greige production shifts from financial loss to a viable run. Setting up creels, threading size boxes, and tying warps onto looms involves substantial fixed costs in labor, downtime, and material scrap. When an order drops below the minimum economical threshold, setup expenses consume unit margins and increase landed costs per meter.

Calculating minimum length balances setup waste amortization against total order volume.

Fixed preparation waste remains nearly constant whether a warp set produces 1,000 meters or 20,000 meters of cloth. Sizing machines require 30 to 50 meters of lead-in sheet to thread through pre-wetting tanks, size boxes, drying cylinders, lease rods, and headstock winders before chemistry pick-up and tension stabilize. That lead-in cannot be woven into standard fabric and is discarded.

Loom tying-in consumes similar fixed lengths at every beam change. Amortizing 60 meters of setup scrap across a short 600-meter run adds a 10 percent waste penalty to the cloth; spreading that same 60 meters over 12,000 meters drops the penalty to 0.5 percent.

1. Fixed machine setup cost is calculated by multiplying changeover downtime on looms and sizers by hourly shop-floor rates.
2. Fixed scrap mass is quantified by measuring sizing lead-in sheet lengths and loom tying tail remnants.
3. Size box volume requirements are set by the minimum trough level needed to keep rollers continuously submerged.
4. Variable weaving and sizing costs per meter are calculated from power use, labor allocation, and consumable rates.
5. Total cost curves are plotted against incremental warp set lengths to find the breakeven point per meter.
6. Commercial minimum order quantities (MOQ) are locked into contracts based on calculated breakeven limits.

Size bath inventory limits set a physical floor on minimum warp length. Sizing troughs require a minimum volume to submerge immersion rolls and maintain circulation through heating jackets. A standard industrial size box requires between 150 and 300 liters of prepared liquor to reach operational depth.

At the end of a run, residual liquor in the box and piping cannot be recovered and drains to effluent treatment. If a short run uses only 50 kilograms of size solids but leaves 40 kilograms in the drained bath, chemical waste exceeds 44 percent of total consumption.

Small warp sets carry higher sizing chemistry waste percentages because the fixed volume of the sizing trough remains constant regardless of beam length.

Warp set economics dictate loom allocation strategies. Air-jet looms operate at insertion rates above 1,200 double picks per minute, but require longer, more detailed setup and knotting procedures. High-speed rapiers offer faster pattern changes while carrying similar fixed warp overheads.

For custom or short runs, engineers use breakeven calculations: Minimum Economical Warp Length equals total fixed setup costs divided by the target allowable setup cost allocation per meter. If fixed costs for labor, downtime, and yarn waste total 1,200 euros, and setup absorption is capped at 0.10 euros per meter, minimum warp set length equals 12,000 meters.

Comparing the financial breakdown between a 1,200-meter sample set and a 12,000-meter commercial run illustrates the impact. The short set absorbs 180 kilograms of fixed yarn scrap, size bath waste, and loom tying overhead ~ a 15 percent cost increase per finished meter. The 12,000-meter commercial set spreads that setup overhead over ten times the volume, reducing setup scrap loss to 1.5 percent per meter.

Ordering below the calculated minimum threshold forces converters to apply low-volume surcharges, pushing unit prices beyond commercial viability.

How do digital section warping frames and automated individual end-tensioning systems reconfigure minimum warp set thresholds for micro-run greige production without compromising sizing integrity?
